The brief introduction of bus bar
The bus bar system is a power rail, protected from contact ( IP 24 ), for indoor and outdoor plants. The are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35A-170A.
The current collectors, running in ball bearings,are guided by the housing.
The main is transferred by spring-stored carbon brushes.
Advantages and features
Compact design, space saving, easy to install and maintain
Stability and high conductivity.
Flexible, insulated and safe
Aluminum alloy protection, corrosion resistance and long life

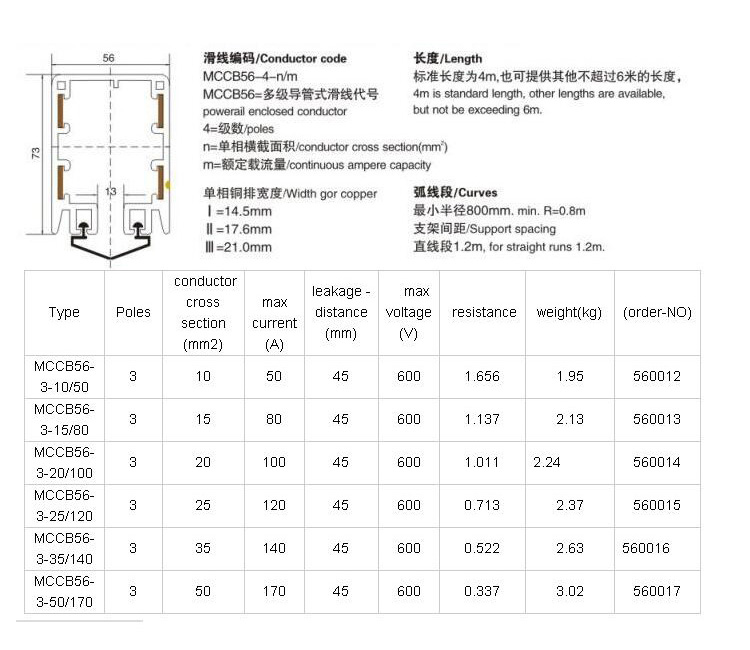

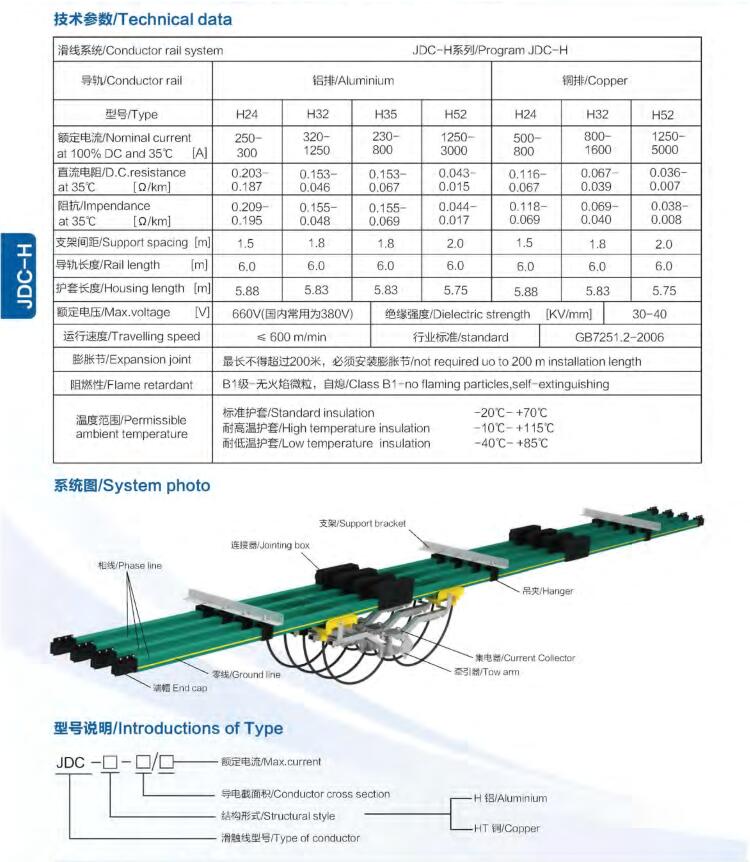

Parameter

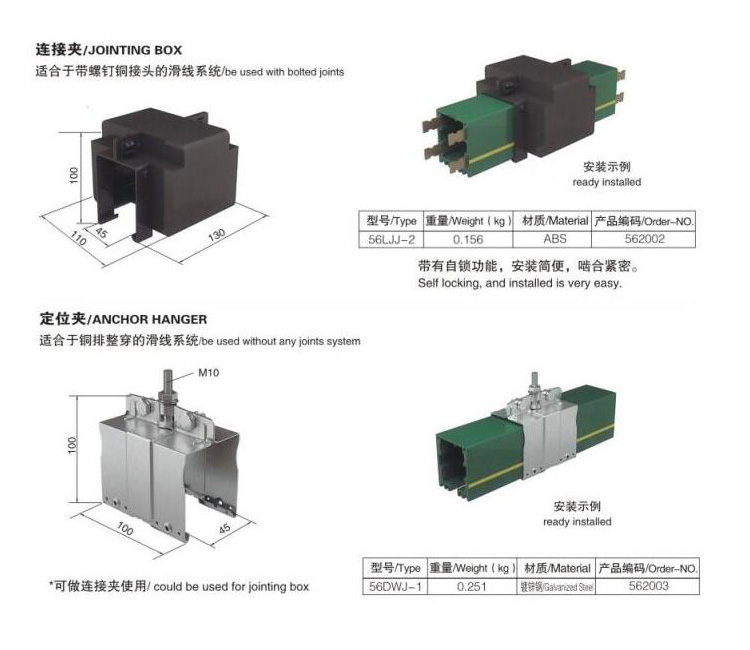

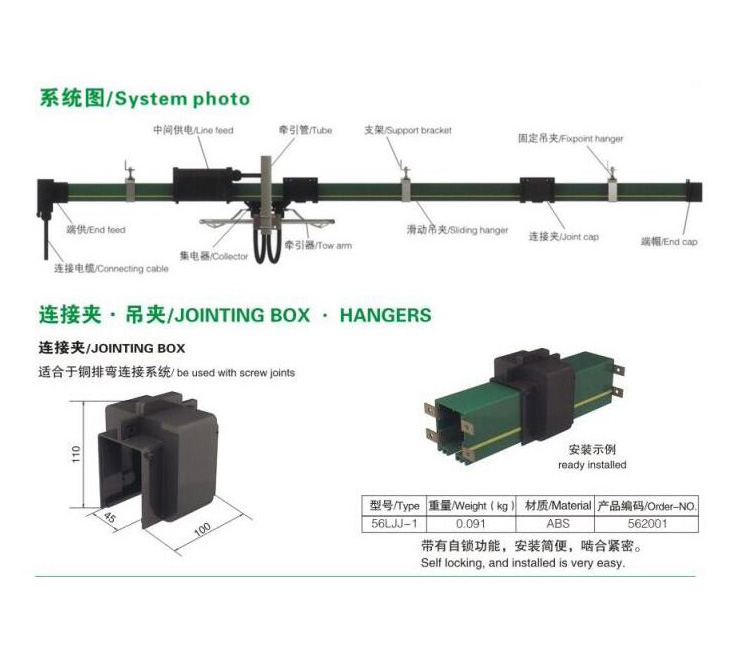

Parts of bus bar
